Datasheet Photo Mfr. Part # Stock Price Quantity Packaging Series ProductStatus ForMeasuring SensorType Current-Sensing NumberofChannels Output Sensitivity Frequency Linearity Accuracy Voltage-Supply ResponseTime Current-Supply(Max) OperatingTemperature Polarization MountingType

7-2252003-6

Datasheet

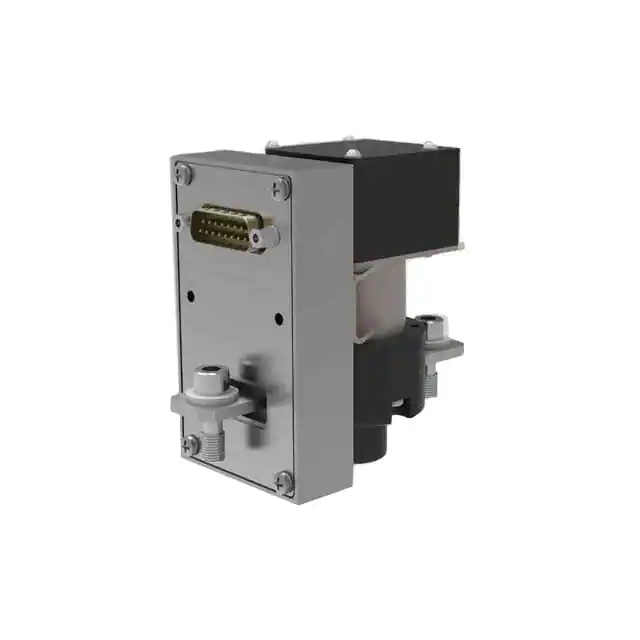

7-2252003-6

7-2252003-6

SCS6004K=SMART CURRENT SENSOR

TE Connectivity Aerospace, Defense and Marine

7078

14560.33

- +

Add To Cart

Inquiry Now

Box

-

Active

DC

Hall Effect

600A

1

Ratiometric, Voltage

6.45mV/A

-

-

±3.5%

16V ~ 32V

450ms

100mA

-40°C ~ 85°C

Unidirectional

Chassis Mount
