Results:

Datasheet	Photo	Mfr. Part #	Stock	Price	Quantity	Packaging	Series	ProductStatus	DiodeType	Voltage-PeakReverse(Max)	Current-Max	Capacitance@VrF	Resistance@IfF	PowerDissipation(Max)	OperatingTemperature

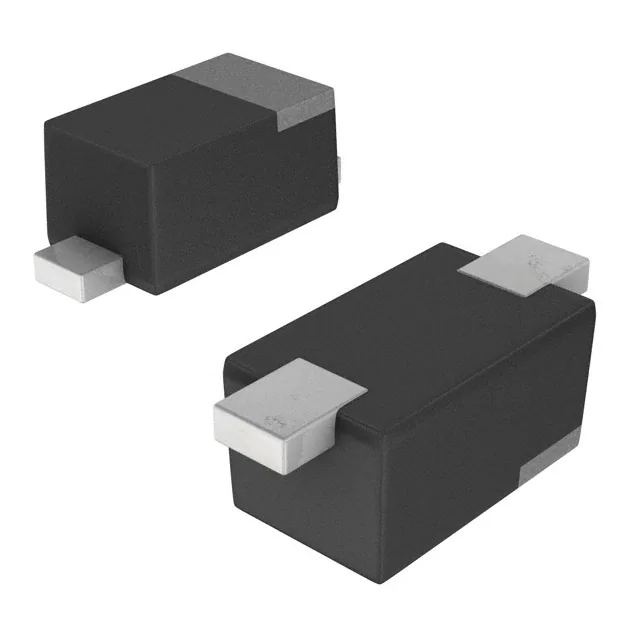

Datasheet		MA2707700L RF DIODE STANDAR 35V SSSMINI2-F1 Panasonic Electronic Components	6717	0.10	- + Add To Cart Inquiry Now	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	-	Obsolete	Standard - Single	35V	100 mA	1.2pF @ 6V, 1MHz	850mOhm @ 2mA, 100MHz	-	-25°C ~ 85°C (TA)
Datasheet		MA2JP0200L RF DIODE PIN 60V 150MW SMINI2-F1 Panasonic Electronic Components	8329	0.22	- + Add To Cart Inquiry Now	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	-	Obsolete	PIN - Single	60V	100 mA	0.5pF @ 1V, 1MHz	2Ohm @ 10mA, 100MHz	150 mW	150°C (TJ)

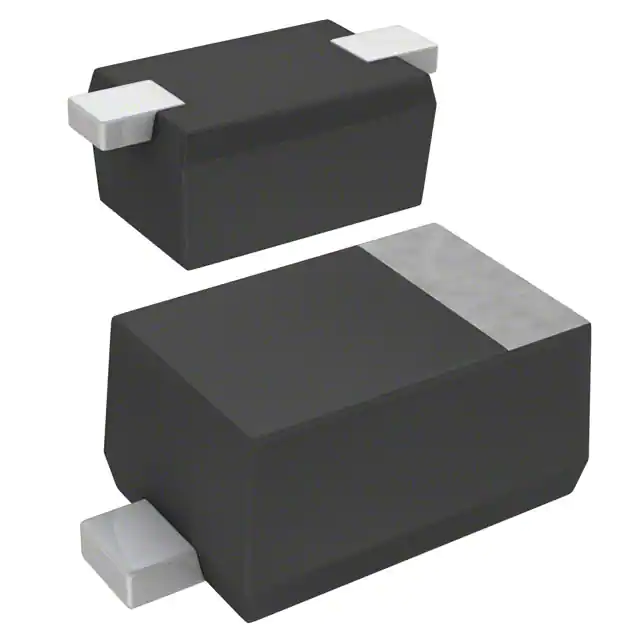

Datasheet		MA2SP050GL RF DIODE PIN 60V SSMINI2-F4 Panasonic Electronic Components	6781	0.60	- + Add To Cart Inquiry Now	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	-	Obsolete	PIN - Single	60V	50 mA	2.4pF @ 0V, 1MHz	5.5Ohm @ 10mA, 100MHz	-	150°C (TJ)
Datasheet		MA2SP0100L DIODE PIN 60V 150MW SSMINI2-F1 Panasonic Electronic Components	7530	0.00	- + Add To Cart Inquiry Now	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	-	Obsolete	PIN - Single	60V	100 mA	0.8pF @ 1V, 1MHz	1Ohm @ 10mA, 100MHz	150 mW	150°C (TJ)
Datasheet		MA2SP0200L DIODE PIN 60V 150MW SSMINI2-F1 Panasonic Electronic Components	8311	0.00	- + Add To Cart Inquiry Now	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	-	Obsolete	PIN - Single	60V	100 mA	0.5pF @ 1V, 1MHz	2Ohm @ 10mA, 100MHz	150 mW	150°C (TJ)
Datasheet		MA2S07700L RF DIODE STANDARD 35V SSMINI2-F2 Panasonic Electronic Components	7613	0.00	- + Add To Cart Inquiry Now	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	-	Obsolete	Standard - Single	35V	100 mA	1.2pF @ 6V, 1MHz	850mOhm @ 2mA, 100MHz	-	-25°C ~ 85°C (TA)
Datasheet		MA27P0100L DIODE PIN 60V 150MW SSSMINI2-F2 Panasonic Electronic Components	7439	0.00	- + Add To Cart Inquiry Now	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	-	Obsolete	PIN - Single	60V	100 mA	0.8pF @ 1V, 1MHz	1Ohm @ 10mA, 100MHz	150 mW	150°C (TJ)
Datasheet		MA27P0200L DIODE PIN 60V 150MW SSSMINI2-F2 Panasonic Electronic Components	8692	0.00	- + Add To Cart Inquiry Now	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	-	Obsolete	PIN - Single	60V	100 mA	0.5pF @ 1V, 1MHz	2Ohm @ 10mA, 100MHz	150 mW	150°C (TJ)
Datasheet		MA27P0700L DIODE PIN 60V 150MW SSSMINI2-F2 Panasonic Electronic Components	7168	0.00	- + Add To Cart Inquiry Now	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	-	Obsolete	PIN - Single	60V	100 mA	0.35pF @ 1V, 1MHz	1.5Ohm @ 10mA, 100MHz	150 mW	150°C (TJ)
Datasheet		MA27P1100L RF DIODE PIN 60V SSSMINI2-F2 Panasonic Electronic Components	8686	0.00	- + Add To Cart Inquiry Now	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	-	Obsolete	PIN - Single	60V	50 mA	0.8pF @ 0V, 1MHz	1.5Ohm @ 10mA, 100MHz	-	150°C (TJ)
Datasheet		MA2SP0500L RF DIODE PIN 60V SSMINI2-F1 Panasonic Electronic Components	7788	0.00	- + Add To Cart Inquiry Now	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	-	Obsolete	PIN - Single	60V	50 mA	2.4pF @ 0V, 1MHz	5.5Ohm @ 10mA, 100MHz	-	150°C (TJ)
Datasheet		MA2SP0600L RF DIODE PIN 60V SSMINI2-F1 Panasonic Electronic Components	8170	0.00	- + Add To Cart Inquiry Now	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	-	Obsolete	PIN - Single	60V	100 mA	0.6pF @ 1V, 1MHz	1.2Ohm @ 10mA, 100MHz	-	150°C (TJ)
Datasheet		MA2C85800E RF DIODE STANDARD 35V DO34-A1 Panasonic Electronic Components	7454	0.00	- + Add To Cart Inquiry Now	Cut Tape (CT),Tape & Box (TB)	-	Obsolete	Standard - Single	35V	100 mA	1.2pF @ 6V, 1MHz	980mOhm @ 2mA, 100MHz	-	-25°C ~ 85°C (TA)

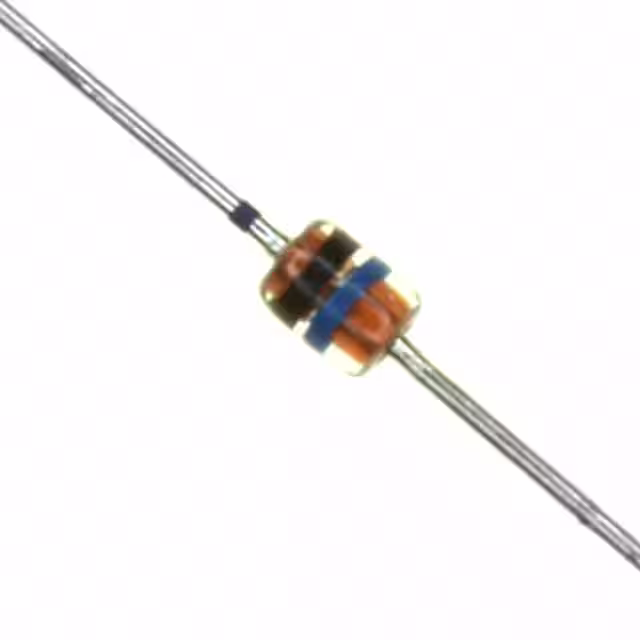

Datasheet		MA2C85900E RF DIODE STANDARD 35V DO34-A1 Panasonic Electronic Components	7002	0.00	- + Add To Cart Inquiry Now	Cut Tape (CT),Tape & Box (TB)	-	Obsolete	Standard - Single	35V	100 mA	1.2pF @ 6V, 1MHz	980mOhm @ 2mA, 100MHz	-	-25°C ~ 85°C (TA)
Datasheet		MA27P010GL DIODE PIN 60V 150MW SSSMINI2-F3 Panasonic Electronic Components	7465	0.00	- + Add To Cart Inquiry Now	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	-	Obsolete	PIN - Single	60V	100 mA	0.8pF @ 1V, 1MHz	1Ohm @ 10mA, 100MHz	150 mW	150°C (TJ)
Datasheet		MA2SP010GL DIODE PIN 60V 150MW SSMINI2-F4 Panasonic Electronic Components	8047	0.00	- + Add To Cart Inquiry Now	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	-	Obsolete	PIN - Single	60V	100 mA	0.8pF @ 1V, 1MHz	1Ohm @ 10mA, 100MHz	150 mW	150°C (TJ)
Datasheet		MA2SP060GL RF DIODE PIN 60V SSMINI2-F4 Panasonic Electronic Components	7125	0.00	- + Add To Cart Inquiry Now	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	-	Obsolete	PIN - Single	60V	100 mA	0.6pF @ 1V, 1MHz	1.2Ohm @ 10mA, 100MHz	-	150°C (TJ)
Datasheet		DA2S00100L DIODE STANDARD 40V SSMINI2-F5-B Panasonic Electronic Components	8685	0.00	- + Add To Cart Inquiry Now	Tape & Reel (TR),Cut Tape (CT),Digi-Reel®	-	Discontinued at Mosen	Standard - Single	40V	100 mA	1.2pF @ 6V, 1MHz	850mOhm @ 2mA, 100MHz	-	150°C (TJ)
