Results:

Datasheet Photo Mfr. Part # Stock Price Quantity Packaging Series ProductStatus NumberofChannels Voltage-Isolation CurrentTransferRatio(Min) CurrentTransferRatio(Max) TurnOn/TurnOffTime(Typ) Rise/FallTime(Typ) InputType OutputType Voltage-Output(Max) Current-Output/Channel Voltage-Forward(Vf)(Typ) Current-DCForward(If)(Max) VceSaturation(Max) OperatingTemperature MountingType

KB817

Datasheet

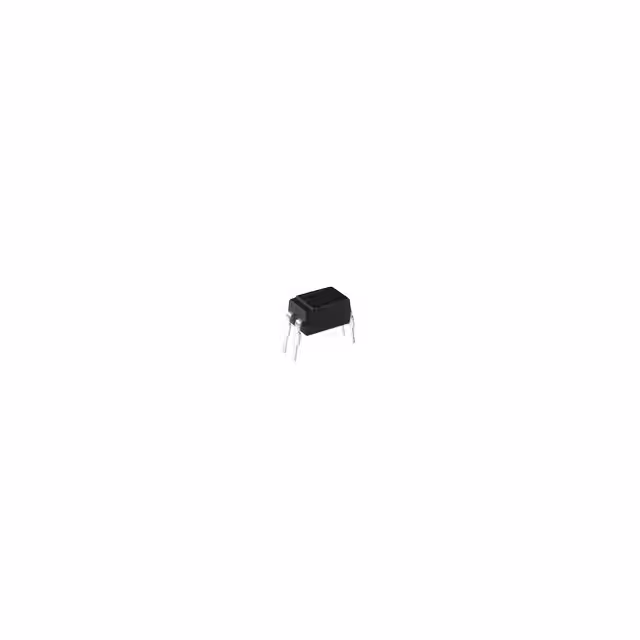

KB817

KB817

1-CHANNEL TYPE PHOTOCOUPLER

5212

0.14

- +

Add To Cart

Inquiry Now

Bulk

-

Active

1

5000Vrms

50% @ 5mA

600% @ 5mA

-

4µs, 3µs

DC

Transistor

35V

50mA

1.2V

50 mA

200mV

-30°C ~ 100°C

Through Hole

Request a Quote
