Datasheet Photo Mfr. Part # Stock Price Quantity Packaging Series ProductStatus SwitchType NumberofOutputs Ratio-Input:Output OutputConfiguration OutputType Interface Voltage-Load Voltage-Supply(Vcc/Vdd) Current-Output(Max) RdsOn(Typ) InputType Features FaultProtection OperatingTemperature MountingType

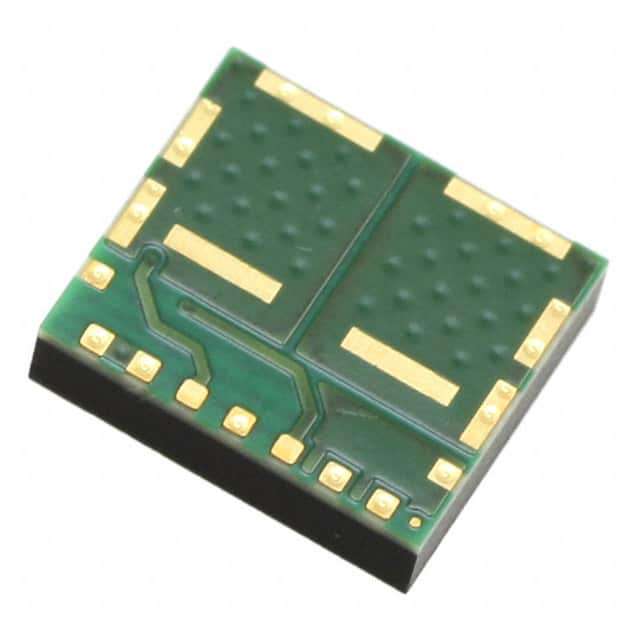

PI2161-01-LGIZ

Datasheet

PI2161-01-LGIZ

PI2161-01-LGIZ

IC PWR SWITCH N-CHAN 1:1 17LGA

Vicor Corporation

7036

0.00

- +

Add To Cart

Inquiry Now

Tube

-

Obsolete

General Purpose

1

1:1

Low Side

N-Channel

-

8.5V ~ 10.5V

-

12A

8.5mOhm

-

Latch Function

-

-40°C ~ 125°C (TJ)

Surface Mount
