| Datasheet | Photo | Mfr. Part # | Stock | Price | Quantity | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Datasheet |
|
9007-12-00RELAY REED SPST 500MA 12V |
7502 | 1.44 |
Add To CartInquiry Now |
Tube | 9000, Spartan | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C |
|
Datasheet |
|
9007-05-00RELAY REED SPST 500MA 5V |
7121 | 1.49 |
Add To CartInquiry Now |
Tube | 9000, Spartan | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C |
|
Datasheet |
|
9007-05-01RELAY REED SPST 500MA 5V |
6962 | 1.59 |
Add To CartInquiry Now |
Tube | 9000, Spartan | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C |
|
Datasheet |
|
9007-24-00RELAY REED SPST 500MA 24V |
7236 | 2.27 |
Add To CartInquiry Now |
Tube | 9000, Spartan | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C |
|
Datasheet |
|
8L01-05-001RELAY REED SPST 500MA 5V |
8645 | 2.70 |
Add To CartInquiry Now |
Tube | 8L | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.5 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C |
|
Datasheet |
|
8L01-12-001RELAY REED SPST 500MA 12V |
8596 | 3.02 |
Add To CartInquiry Now |
Tube | 8L | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 9.6 VDC | 1 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C |
|
Datasheet |
|
8L02-05-00RELAY REED DPST 500MA 5V |
7501 | 4.96 |
Add To CartInquiry Now |
Tube | 8L | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 25 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.5 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C |
|
Datasheet |
|
9001-12-00RELAY REED SPST 500MA 12V |
6817 | 5.17 |
Add To CartInquiry Now |
Tube | 9000 | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.35 ms | 0.1 ms | -20°C ~ 85°C |
|
Datasheet |
|
9001-05-01RELAY REED SPST 500MA 5V |
8702 | 5.37 |
Add To CartInquiry Now |
Tube | 9000 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.1 ms | -20°C ~ 85°C |
|
Datasheet |
|
9001-12-01RELAY REED SPST 500MA 12V |
7021 | 5.47 |
Add To CartInquiry Now |
Tube | 9000 | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 9 VDC | 1 VDC | 0.35 ms | 0.1 ms | -20°C ~ 85°C |
|
Datasheet |
|

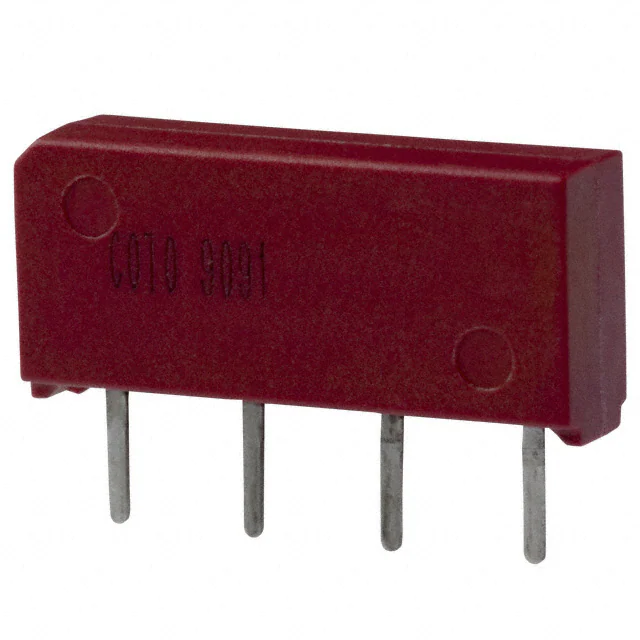

9091-05-00RELAY REED SPST 500MA 5V |
8289 | 5.52 |
Add To CartInquiry Now |
Tube | 9091 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.5 ms | 0.3 ms | -20°C ~ 85°C |
|
Datasheet |
|
9401-12-00-TRRELAY REED SPST 500MA 12V |
7669 | 9.80 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | 9400 | Active | Surface Mount | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 14.5 mA | Non Latching | - | Gull Wing | - | 9 VDC | 1 VDC | 0.4 ms | 0.2 ms | -20°C ~ 85°C |
|
Datasheet |
|

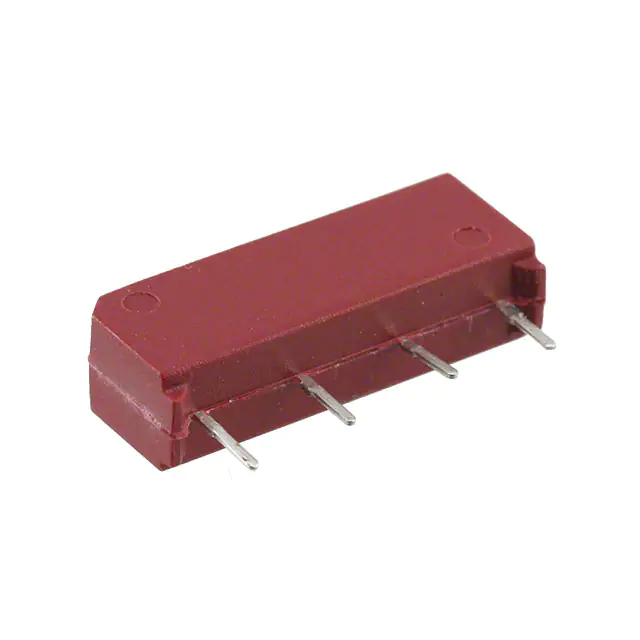

9001-05-02RELAY REED SPST 500MA 5V |
8110 | 6.15 |
Add To CartInquiry Now |
Tube | 9000 | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.1 ms | -20°C ~ 85°C |
|
Datasheet |
|
8L01-05-111RELAY REED SPST 500MA 5V |
5355 | 6.15 |
Add To CartInquiry Now |
Tube | 8L | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 3.8 VDC | 0.5 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C |
|
Datasheet |
|

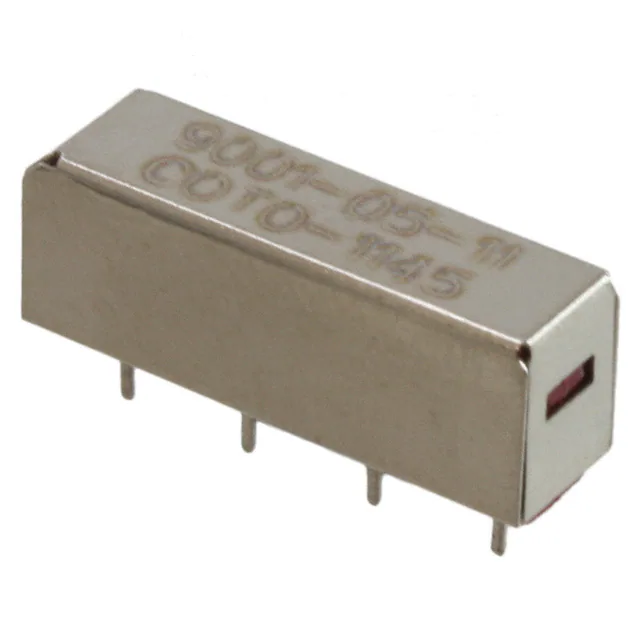

9001-05-11RELAY REED SPST 500MA 5V |
7539 | 6.45 |
Add To CartInquiry Now |
Tube | 9000 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.1 ms | -20°C ~ 85°C |
|
Datasheet |
|
8L02-05-10RELAY REED DPST 500MA 5V |
8655 | 6.73 |
Add To CartInquiry Now |
Tube | 8L | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 25 mA | Non Latching | Electrostatic Shield | PC Pin | - | 3.8 VDC | 0.5 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C |
|
Datasheet |
|
9901-05-20TRRELAY REED SPST 250MA 5V |
6726 | 12.12 |
Add To CartInquiry Now |
Tape & Reel (TR),Cut Tape (CT),Digi-Reel® | 9900 | Active | Surface Mount | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 33.3 mA | Non Latching | EMI Shielded | J Lead | - | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | -20°C ~ 85°C |
|
Datasheet |
|
9401-05-00RELAY REED SPST 500MA 5V |
7751 | 7.89 |
Add To CartInquiry Now |
Tube | 9400 | Active | Surface Mount | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 25 mA | Non Latching | - | Gull Wing | - | 3.75 VDC | 0.4 VDC | 0.4 ms | 0.2 ms | -20°C ~ 85°C |
|
Datasheet |
|
9012-05-10RELAY REED SPST 500MA 5V |
7864 | 9.73 |
Add To CartInquiry Now |
Tube | 9012 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.1 ms | -20°C ~ 85°C |
|
Datasheet |
|
9011-05-11RELAY REED SPST 250MA 5V |
7355 | 9.80 |
Add To CartInquiry Now |
Bulk | 9011 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 10 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.1 ms | -20°C ~ 85°C |
