| Datasheet | Photo | Mfr. Part # | Stock | Price | Quantity | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Datasheet |
|
SAR92403RELAY REED SPST 500MA 24V |
4863 | 34.63 |
Add To CartInquiry Now |
Tray | S | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 20VAC, 20VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 20 VDC | 2 VDC | 1 ms | 0.5 ms | -20°C ~ 70°C |
|
Datasheet |
|

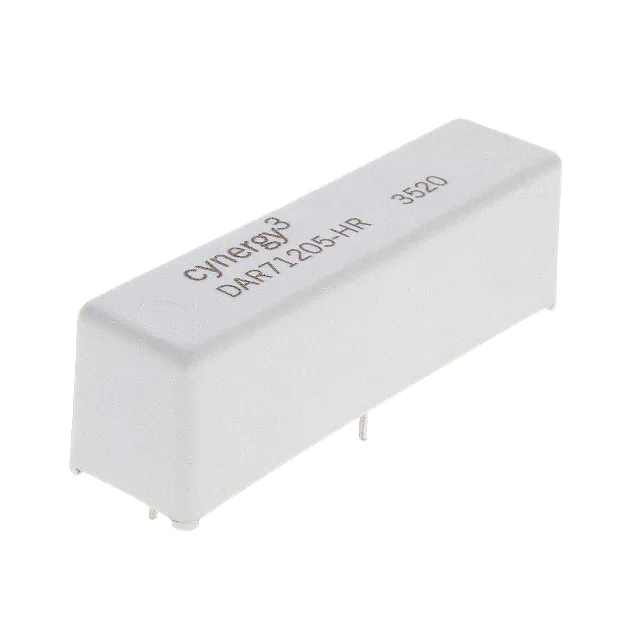

DAR71205-HRRELAY REED 5KV 12V SPST-NO |
8595 | 36.65 |
Add To CartInquiry Now |
Bulk | D-HR | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 80 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
Datasheet |
|

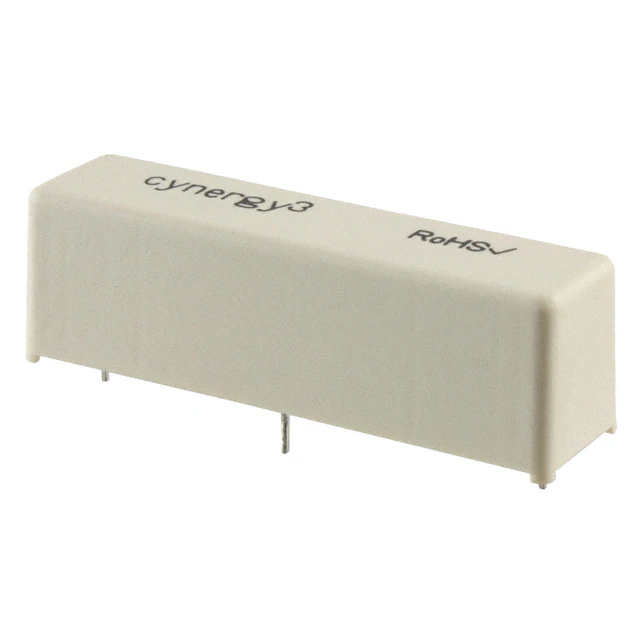

DAR71210RELAY REED SPST-NO 3A 12V |
8100 | 46.42 |
Add To CartInquiry Now |
Tray | DA | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 80 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
Datasheet |
|
DAT71210RELAY REED SPST-NO 2A 12V |
5462 | 48.91 |
Add To CartInquiry Now |
Tray | DA | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 80 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
Datasheet |
|
DAT70510RELAY REED SPST-NO 2A 5V |
5417 | 48.91 |
Add To CartInquiry Now |
Tray | DA | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 179 mA | Non Latching | - | PC Pin | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
Datasheet |
|

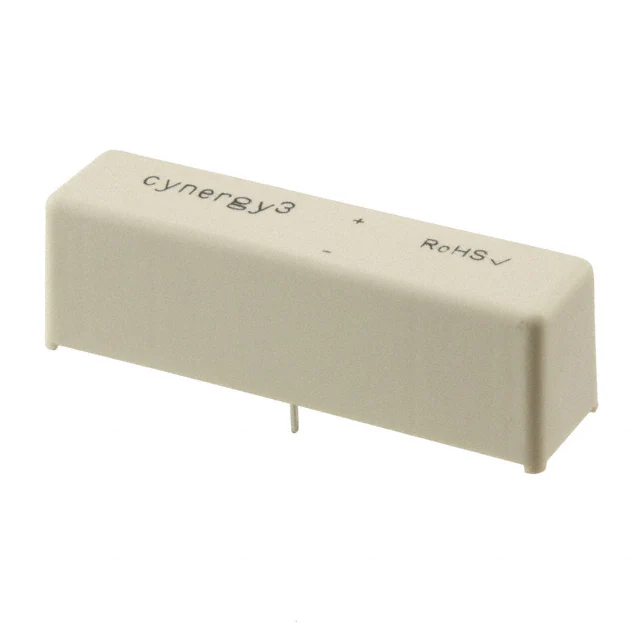

DBR71210RELAY REED SPST-NC 3A 12V |
5498 | 56.60 |
Add To CartInquiry Now |
Tray | DB | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 50 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
Datasheet |
|
DBT72410RELAY REED SPST-NC 2A 24V |
8002 | 59.12 |
Add To CartInquiry Now |
Tray | DB | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 25.9 mA | Non Latching | - | PC Pin | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
Datasheet |
|
DBT71210RELAY REED SPST-NC 2A 12V |
5065 | 59.12 |
Add To CartInquiry Now |
Tray | DB | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 50 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
Datasheet |
|
DAT71210FRELAY REED SPST-NO 2A 12V |
5408 | 60.09 |
Add To CartInquiry Now |
Tray | DA | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 80 mA | Non Latching | - | PC Pin, Wire Leads | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
Datasheet |
|
DAT72410SRELAY REED SPST-NO 2A 24V |
4848 | 60.09 |
Add To CartInquiry Now |
Bulk | DA | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 30.7 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
Datasheet |
|
S2-12ERELAY REED SPST 1A 12V |
4954 | 19.20 |
Add To CartInquiry Now |
Bulk | S2 | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 12 mA | Non Latching | - | Axial | - | 9 VDC | 2 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C |
|
Datasheet |
|
SAR91203RELAY REED SPST 500MA 12V |
4886 | 34.63 |
Add To CartInquiry Now |
Tray | S | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 20VAC, 20VDC - Max | 20 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 1 ms | 0.5 ms | -20°C ~ 70°C |
|
Datasheet |
|

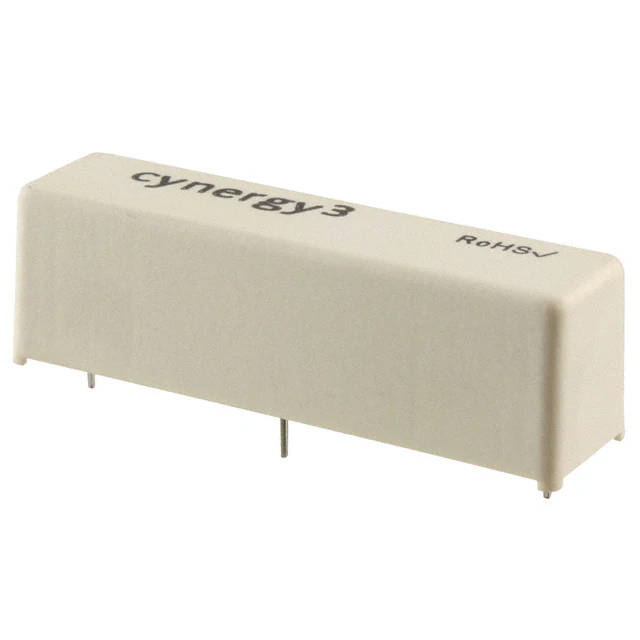

DAR70510RELAY REED SPST-NO 3A 5V |
4831 | 46.42 |
Add To CartInquiry Now |
Bulk | DA | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 179 mA | Non Latching | - | PC Pin | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
Datasheet |
|
S8-0504RELAY REED SPST 1A 5V |
4911 | 13.54 |
Add To CartInquiry Now |
Bulk | S8 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 41.7 mA | Non Latching | - | PC Pin | - | 4 VDC | 1 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C |
|
Datasheet |
|
SAR90505RELAY REED SPST 500MA 5V |
4817 | 38.28 |
Add To CartInquiry Now |
Tray | S | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 20VAC, 20VDC - Max | 35.7 mA | Non Latching | - | PC Pin | - | 3.7 VDC | 0.5 VDC | 1 ms | 0.5 ms | -20°C ~ 70°C |
|
Datasheet |
|
DBT70510URELAY REED SPST-NC 2A 5V |
4852 | 68.01 |
Add To CartInquiry Now |
Bulk | DB | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 132 mA | Non Latching | - | PC Pin | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
Datasheet |
|
DAR72410RELAY REED SPST-NO 3A 24V |
8019 | 46.42 |
Add To CartInquiry Now |
Tray | DA | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 30.7 mA | Non Latching | - | PC Pin | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
Datasheet |
|
DBT70510RELAY REED SPST-NC 2A 5V |
8210 | 59.12 |
Add To CartInquiry Now |
Tray | DB | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 132 mA | Non Latching | - | PC Pin | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
Datasheet |
|
DAT72410FRELAY REED SPST-NO 2A 24V |
8706 | 60.09 |
Add To CartInquiry Now |
Tray | DA | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 30.7 mA | Non Latching | - | PC Pin, Wire Leads | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
Datasheet |
|

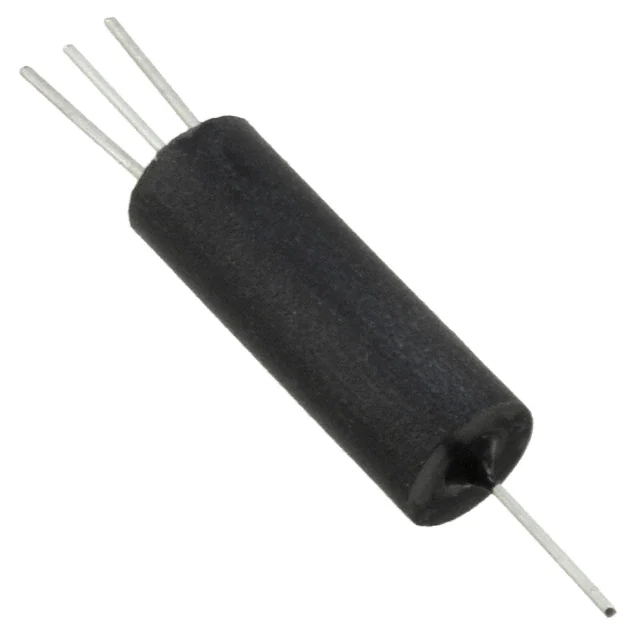

S2-03PRELAY REED SPST 250MA 3V |
7063 | 14.13 |
Add To CartInquiry Now |
Bulk | S2 | Active | Through Hole | 3VDC | SPST-NO (1 Form A) | 250 mA | 140VAC, 200VDC - Max | 12 mA | Non Latching | - | Axial | - | 2.25 VDC | 0.5 VDC | 0.1 ms | 0.07 ms | -40°C ~ 85°C |
