| Mfr. Part # | Stock | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8001-05-101RELAY REED SPST 500MA 5V |
8468 | 0.00 |
Add To CartInquiry Now |
Datasheet |
Tube | 8000 | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | Electrostatic Shield | PC Pin | - | 3.8 VDC | 0.5 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C |
|
|
8001-12-001RELAY REED SPST 500MA 12V |
6781 | 0.00 |
Add To CartInquiry Now |
Datasheet |
Tube | 8000 | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 9.6 VDC | 1 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C |
|
|
8002-05-00RELAY REED DPST 500MA 5V |
7790 | 0.00 |
Add To CartInquiry Now |
Datasheet |
Tube | 8000 | Obsolete | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 25 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.5 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C |
|
8002-12-00RELAY REED DPST 500MA 12V |
7894 | 0.00 |
Add To CartInquiry Now |
Datasheet |
Tube | 8000 | Obsolete | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 9.6 VDC | 1 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C |
|
|
8041-05-101RELAY REED SPDT 250MA 5V |
7388 | 0.00 |
Add To CartInquiry Now |
Datasheet |
Tube | 8000 | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 25 mA | Non Latching | Electrostatic Shield | PC Pin | - | 3.8 VDC | 0.5 VDC | 1 ms | 1 ms | -20°C ~ 85°C |
|
|
8041-05-111RELAY REED SPDT 250MA 5V |
8548 | 0.00 |
Add To CartInquiry Now |
Datasheet |
Tube | 8000 | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 25 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 3.8 VDC | 0.5 VDC | 1 ms | 1.5 ms | -20°C ~ 85°C |
|
|
8041-12-001RELAY REED SPDT 250MA 12V |
7861 | 0.00 |
Add To CartInquiry Now |
Datasheet |
Tube | 8000 | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 9.6 VDC | 1 VDC | 1 ms | 1 ms | -20°C ~ 85°C |
|
|
8041-12-011RELAY REED SPDT 250MA 12V |
6952 | 0.00 |
Add To CartInquiry Now |
Datasheet |
Tube | 8000 | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 24 mA | Non Latching | Diode | PC Pin | - | 9.6 VDC | 1 VDC | 1 ms | 1.5 ms | -20°C ~ 85°C |
|
|
8041-12-101RELAY REED SPDT 250MA 12V |
8465 | 0.00 |
Add To CartInquiry Now |
Datasheet |
Tube | 8000 | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 24 mA | Non Latching | Electrostatic Shield | PC Pin | - | 9.6 VDC | 1 VDC | 1 ms | 1 ms | -20°C ~ 85°C |
|

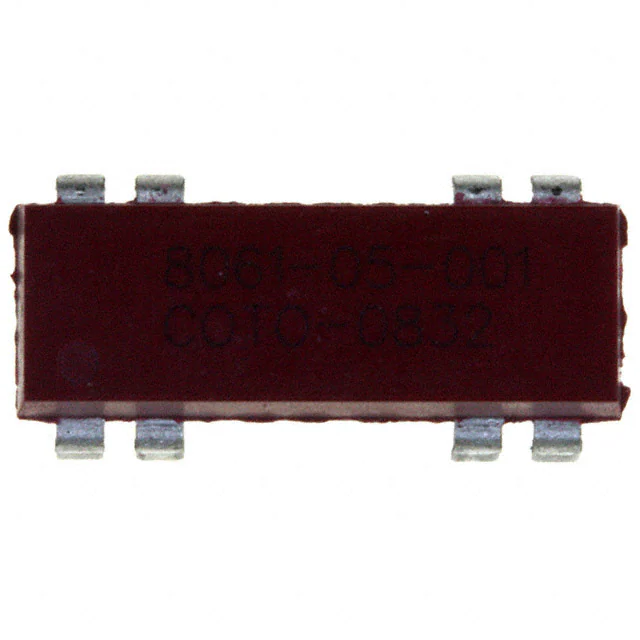

8061-05-001RELAY REED SPDT 250MA 5V |
6758 | 0.00 |
Add To CartInquiry Now |
Datasheet |
Tube | 8000 | Obsolete | Surface Mount | 5VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 25 mA | Non Latching | - | J Lead | - | 3.8 VDC | 0.5 VDC | 1 ms | 1 ms | -20°C ~ 85°C |
|
|
8061-05-011RELAY REED SPDT 250MA 5V |
7680 | 0.00 |
Add To CartInquiry Now |
Datasheet |
Tube | 8000 | Obsolete | Surface Mount | 5VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 25 mA | Non Latching | Diode | J Lead | - | 3.8 VDC | 0.5 VDC | 1 ms | 1.5 ms | -20°C ~ 85°C |
|

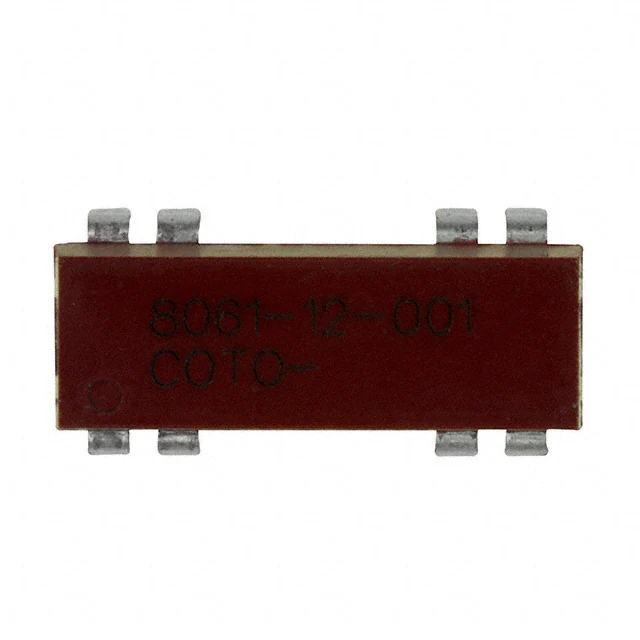

8061-12-001RELAY REED SPDT 250MA 12V |
7417 | 0.00 |
Add To CartInquiry Now |
Datasheet |
Tube | 8000 | Obsolete | Surface Mount | 12VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 24 mA | Non Latching | - | J Lead | - | 9.6 VDC | 1 VDC | 1 ms | 1 ms | -20°C ~ 85°C |
|

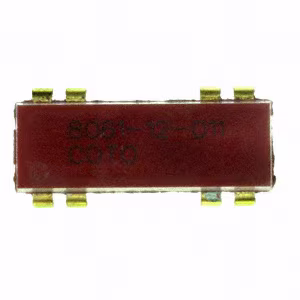

8061-12-011RELAY REED SPDT 250MA 12V |
7330 | 0.00 |
Add To CartInquiry Now |
Datasheet |
Tube | 8000 | Obsolete | Surface Mount | 12VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 24 mA | Non Latching | Diode | J Lead | - | 9.6 VDC | 1 VDC | 1 ms | 1.5 ms | -20°C ~ 85°C |
|
|
8061-12-111RELAY REED SPDT 250MA 12V |
7688 | 0.00 |
Add To CartInquiry Now |
Datasheet |
Tube | 8000 | Obsolete | Surface Mount | 12VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 24 mA | Non Latching | Diode, Electrostatic Shield | J Lead | - | 9.6 VDC | 1 VDC | 1 ms | 1.5 ms | -20°C ~ 85°C |
|
8L21-05-00RELAY REED SPST 500MA 5V |
7738 | 0.00 |
Add To CartInquiry Now |
Datasheet |
Tube | 8L | Obsolete | Through Hole | 5VDC | SPST-NC (1 Form B) | 500 mA | 200VAC, 200VDC - Max | 25 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.5 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C |
|
|
8L21-05-01RELAY REED SPST 500MA 5V |
6913 | 0.00 |
Add To CartInquiry Now |
Datasheet |
Tube | 8L | Obsolete | Through Hole | 5VDC | SPST-NC (1 Form B) | 500 mA | 200VAC, 200VDC - Max | 25 mA | Non Latching | Diode | PC Pin | - | 3.8 VDC | 0.5 VDC | 0.5 ms | 1 ms | -20°C ~ 85°C |
|
|
8L21-12-11RELAY REED SPST 500MA 12V |
8640 | 0.00 |
Add To CartInquiry Now |
Datasheet |
Tube | 8L | Obsolete | Through Hole | 12VDC | SPST-NC (1 Form B) | 500 mA | 200VAC, 200VDC - Max | 24 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 9.6 VDC | 1 VDC | 0.5 ms | 1 ms | -20°C ~ 85°C |
|
|
8L21-24-00RELAY REED SPST 500MA 24V |
7747 | 0.00 |
Add To CartInquiry Now |
Datasheet |
Tube | 8L | Obsolete | Through Hole | 24VDC | SPST-NC (1 Form B) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 19.2 VDC | 2 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C |
|
|
8L21-24-01RELAY REED SPST 500MA 24V |
8105 | 0.00 |
Add To CartInquiry Now |
Datasheet |
Tube | 8L | Obsolete | Through Hole | 24VDC | SPST-NC (1 Form B) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 19.2 VDC | 2 VDC | 0.5 ms | 1 ms | -20°C ~ 85°C |
|
|
8L21-24-10RELAY REED SPST 500MA 24V |
8573 | 0.00 |
Add To CartInquiry Now |
Datasheet |
Tube | 8L | Obsolete | Through Hole | 24VDC | SPST-NC (1 Form B) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | Electrostatic Shield | PC Pin | - | 19.2 VDC | 2 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C |
